NXT SATELLITE

& IP Receiver

NXT SATELLITE& IP RECEIVER

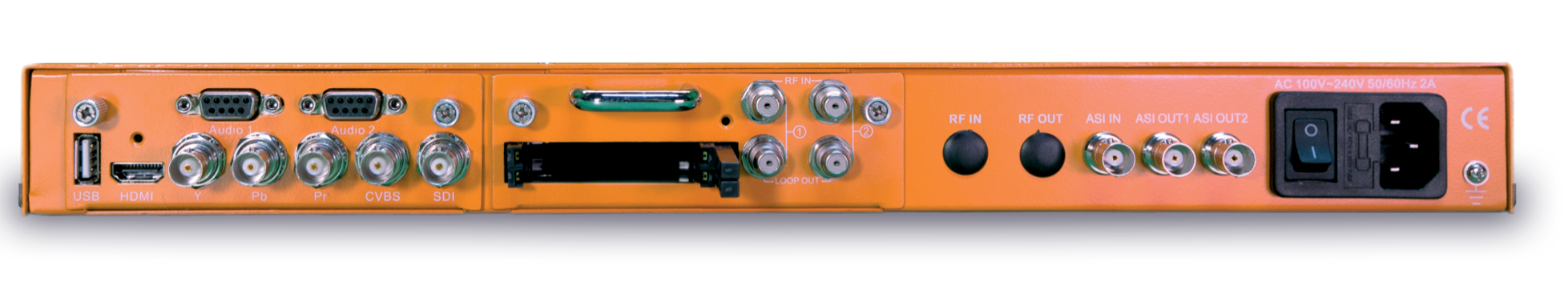

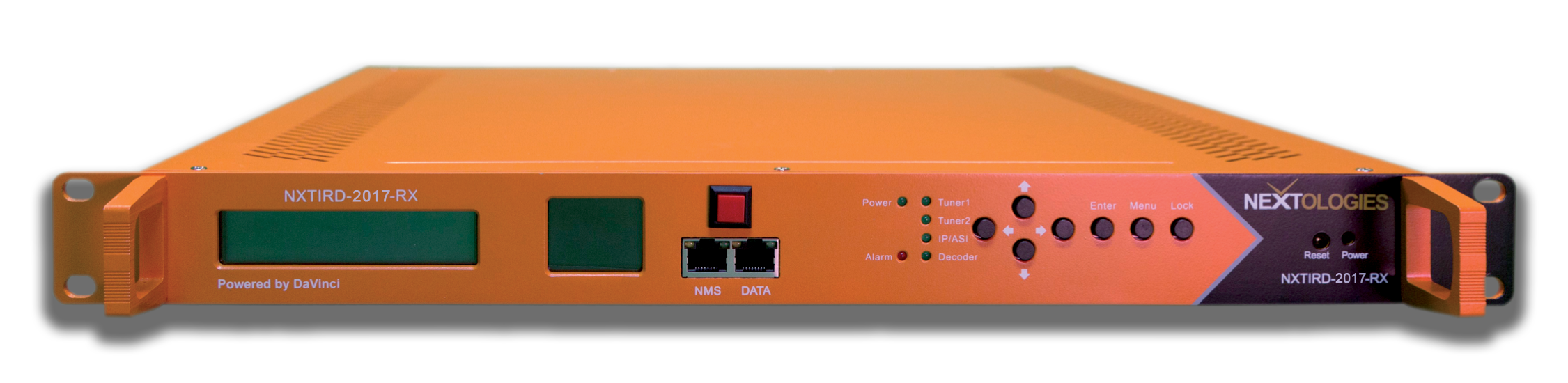

NXTIRD-2017-RX SATELLITE & IP RECEIVER

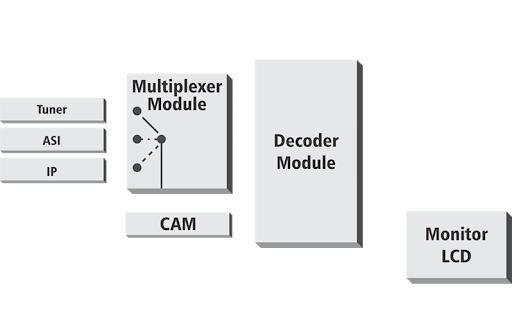

BLOCK DIAGRAM

Nextologies' Satellite & IP Receiver is our newest professional SD/HD video and audio decoding, multiplexing device. This unit has the Nextologies TXR software built-in for transmission or reception over public internet and ultra low-latency private fiber lines. It can decode any of the following inputs: DVB-S2, ASI and IP. In all modes, it transports a true broadcast quality signal. In conclusion, its high integration and cost-effective design make this device widely used in a variety of digital distribution systems such as CATV digital headends, satellites and terrestrial digital TV etc.

NXTIRD-2017-RX Satellite & IP Receiver

  • Supports DVB-C/DVB-S/DMB-T/DVB-T/DVB-S2/ISDB-T/ATSC-T RF Input
  • Supports LCD display for decoding video
  • Various tuner standard available
  • Supports MPEG-2 & MPEG-4 video decoding
  • Supports IP Re-TransmiSSion
  • Supports AC3 pass through
  • Re-multiplexer embedded
  • Supports Tuner, IP ASI Input at the same time
  • Supports IP, ASI, Decoding output at the same time
  • Supports 10xSPTS/32xSPTS and 1 IP MPTS output
  • Supports CAM card insert (Cl/CI+)
  • Supports CC (Closed Caption)
  • Supports Front Panel and NMS/SNMP network management and web management

NXTIRD-2017-RX Satellite & IP Receiver

Input Interface Tuner 1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ISDB-T/ATSC-T optional)
DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM
DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds
DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth
DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth
DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds
ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth
ATSC-T: 54MHz~858MHz, 6M bandwidth
ASI 1 ASI IN(support 188/204 package format)
IP 1 IP(100M, R145 Port)
Output ASI Output 2 ASI output(after multiplexer)
2 ASI output(tuner input pass through)
IP Output 1 MPTS output
10 SPTS output
32 SPTS output
Video Output 1xCVBS(BNC): 576i@25fps, 480i@29.97fps
1xYPbPr(BNC): 1080i@25, 29.97, 30fps, 720p@50, 59.94fps
1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps;
480i@29.97fps
1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps
Audio Output Stereo unbalanced audio: BNC interface
Stereo balanced audio: XLR interface
Digital audio: SPDIF
Video Decoding MPEG-2, MPEG-4
Audio Decoding MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC
NMS Port Ethernet Port 10/100M
Standard TS Over IP: UDP NMS: TCP/IP
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management
System English and Chinese interface conversion
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade
LCD Monitor for decoding video
Miscellaneous Dimensions 482mm x 455mm x 44.5mm ( LxWxH)
Approx weight 3.2kg
Power <20W(Max)
Temperature 0~45°C (work), -20~80°C (Storage)

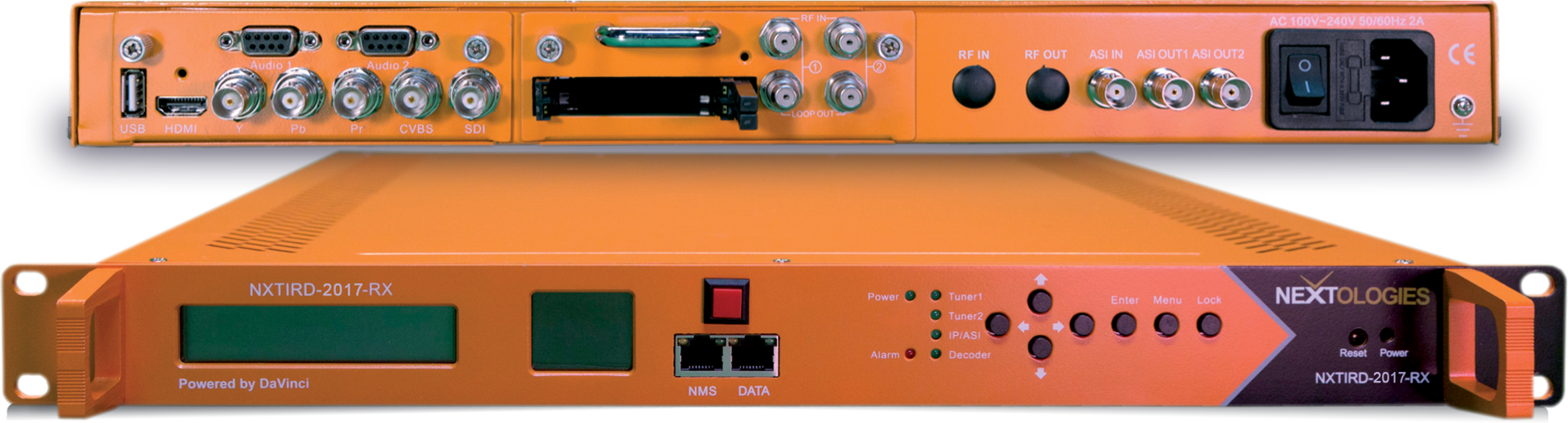

NXTIRD-2017-RX SATELLITE & IP RECEIVER

Nextologies' Satellite & IP Receiver is our newest professional SD/HD video and audio decoding, multiplexing device. This unit has the Nextologies TXR software built-in for transmission or reception over public internet and ultra low-latency private fiber lines. It can decode any of the following inputs: DVB-S2, ASI and IP. In all modes, it transports a true broadcast quality signal. In conclusion, its high integration and cost-effective design make this device widely used in a variety of digital distribution systems such as CATV digital headends, satellites and terrestrial digital TV etc.

BLOCK DIAGRAM

NXTIRD-2014-RX SATELLITE & IP RECEIVER KEY FEATURES

  • Supports DVB-C/DVB-S/DMB-T/DVB-T/DVB-S2/ISDB-T/ATSC-T RF Input
  • Supports LCD display for decoding video
  • Various tuner standard available
  • Supports MPEG-2 & MPEG-4 video decoding
  • Supports IP Re-TransmiSSion
  • Supports AC3 pass through
  • Re-multiplexer embedded
  • Supports Tuner, IP ASI Input at the same time
  • Supports IP, ASI, Decoding output at the same time
  • Supports 10xSPTS/32xSPTS and 1 IP MPTS output

NXTIRD-2014-RX SATELLITE & IP RECEIVER SPECIFICATIONS

Input InterfaceTuner
  • 1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ISDB-T/ATSC-T optional)
  • DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM
  • DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds
  • DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth
  • DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth
  • DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds
  • ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth
  • ATSC-T: 54MHz~858MHz, 6M bandwidth
ASI
  • 1 ASI IN(support 188/204 package format)
IP
  • 1 IP(100M, R145 Port)
OutputASI Output
  • 2 ASI output(after multiplexer)
  • 2 ASI output(tuner input pass through)
IP Output
  • 1 MPTS output
  • 10 SPTS output
  • 32 SPTS output
Video Output
  • 1xCVBS(BNC): 576i@25fps, 480i@29.97fps
  • 1xYPbPr(BNC): 1080i@25, 29.97, 30fps, 720p@50, 59.94fps
  • 1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps;
  • 480i@29.97fps
  • 1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps
Audio Output
  • Stereo unbalanced audio: BNC interface
  • Stereo balanced audio: XLR interface
Digital audio
  • SPDIF
Video Decoding
  • MPEG-2, MPEG-4
Audio Decoding
  • MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC
NMS PortEthernet Port
  • 10/100M
Standard
  • TS Over IP: UDP NMS: TCP/IP
  • Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web Management
System
  • English and Chinese interface conversion
  • Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade
  • LCD Monitor for decoding video
MiscellaneousDimensions
  • 482mm x 455mm x 44.5mm ( LxWxH)
Approx weight
  • 3.2kg
Power
  • <20W(Max)
Temperature
  • 0~45°C (work), -20~80°C (Storage)
