NXT ENCODER

NXT ENCODER

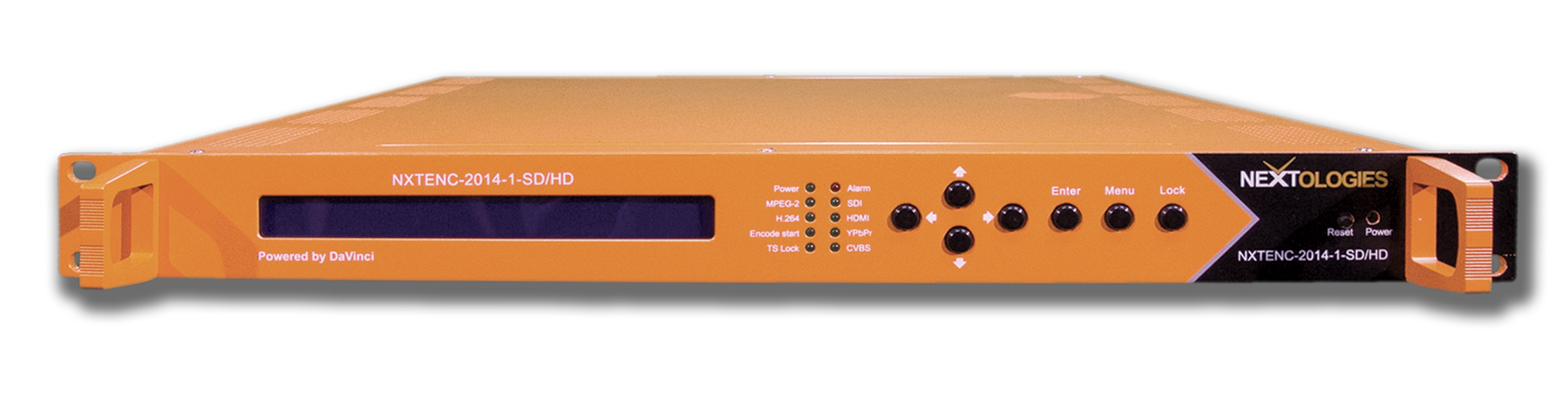

NXTENC-2014-1-HD MPEG-2/H.264

BLOCK DIAGRAM

Nextologies' Encoder is our newest broadcasting SD/HD video and audio encoding, multiplexing device with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI), and audio input interfaces (AES, RCA and XLR). It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, HE-AAC and LC-AAC audio encoding.

NXTENC-2014-1-HD MPEG-2/H.264

  • MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
  • Supports 720p, 1080I, 480I and 576I video resolution
  • MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC audio encoding
  • Supports 2 stereo or 4 mono audio encoding
  • Supports AC3 pass through
  • Supports CC (closed caption), ElA 608 and EIA 708
  • IP (MPTS/8*SPTS) Output; ASI Output
  • Supports UDP/RTP media transmission protocols & multicast/unicast output
  • LCD / keyboard control and web management

NXTENC-2014-1-HD MPEG-2/H.264

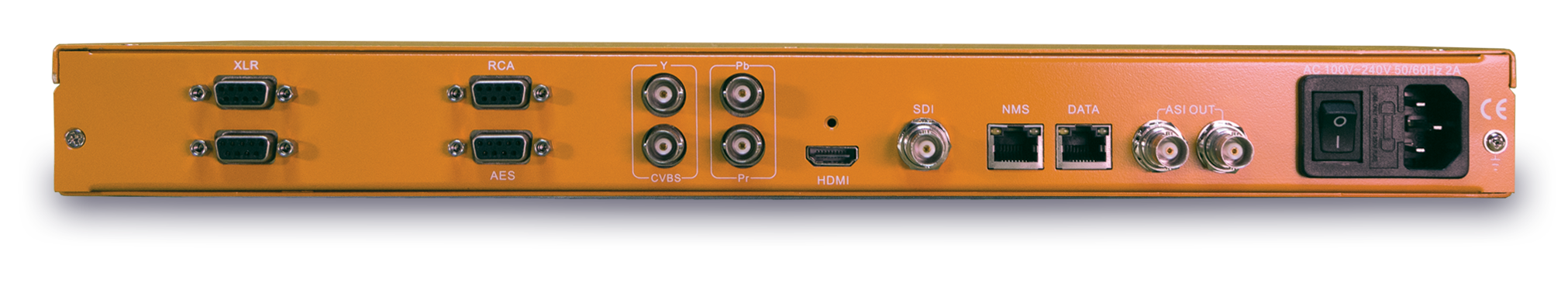

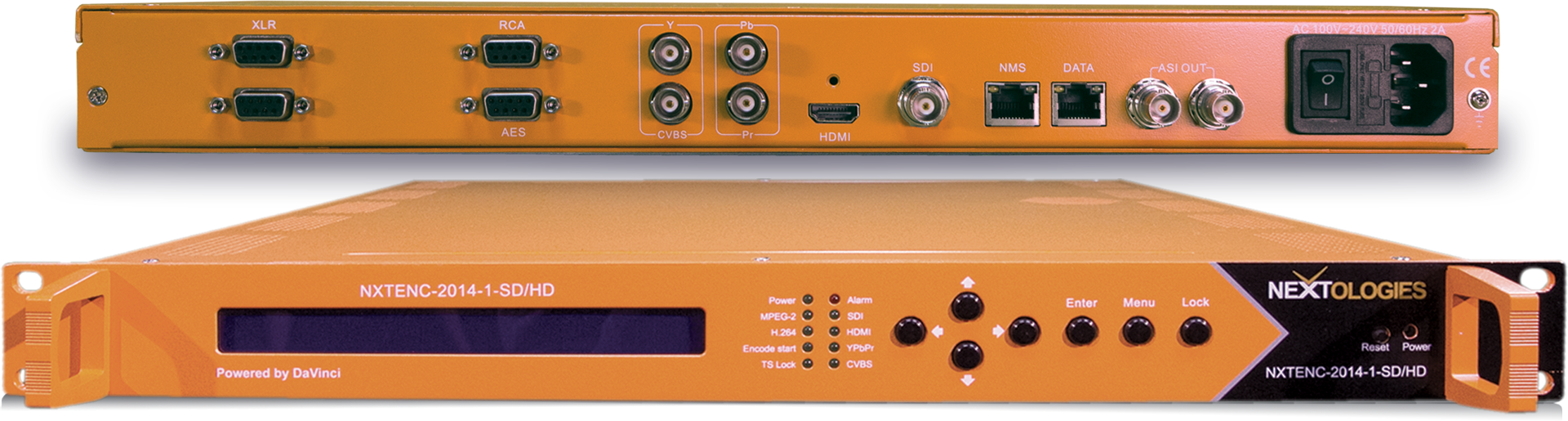

Input 1 x SDI, 1 x CVBS, 1 x YPbPr and 1 x HDMI input
2 x XLR, 2 x RCS and 1x AES inputs
1 x ASI input, BNC interface
Video Resolution 1920 x 1080i @59.94Hz, 1920 x 1080i @50Hz
1280 x 720p @ 59.94Hz, 1280 x 720p @50Hz
720 x 480i @59.94Hz, 720 x 576i @50Hz
Encoding MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD
Bit-rate 0.25Mbps~60.5Mbps
Rate Control CBR/VBR
GOP Structure Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB
Aspect Ratio 4:3; 16:9; 1:1; 2.35:1
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio Encoding MPEG-1 Layer II HE-AAC (v1&v2) LC-AAC
Sampling rate 48KHz
Resolution 24-bit
Bit-rate 32Kbps~384Kbps
Multiplexing 1 ASI input multiplexed with local 1 channels TS
Stream output 2xASI output ports, BNC interface
MPTS/8*SPTS over UDP/RTP, 10/100 Base-T Ethernet interface (UDP/RTP multicast/unicast)
System function LCD/keyboard and web management
Language: English
Ethernet software upgrade
General Dimension(W x L x H) 482mm x 405mm x 44.5mm (W x D x H)
Approx weight 4.5kg
Temperature 0~45°C (operation), 20~80°C (Storage)
Power requirement AC110V±10%, 50/60Hz AC 220v±10%,50/60Hz
Power Consumption 21W

NXTENC-2014-1-HD MPEG-2/H.264

Nextologies' Encoder is our newest broadcasting SD/HD video and audio encoding, multiplexing device with powerful functionality. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI), and audio input interfaces (AES, RCA and XLR). It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, HE-AAC and LC-AAC audio encoding.

BLOCK DIAGRAM

NXTENC-2014-1-HD MPEG-2/H.264

  • MPEG-2 HD/SD and MPEG-4 AVC/H.264 HD/SD video encoding
  • Supports 720p, 1080I, 480I and 576I video resolution
  • MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC audio encoding
  • Supports 2 stereo or 4 mono audio encoding
  • Supports AC3 pass through
  • Supports CC (closed caption), ElA 608 and EIA 708
  • IP (MPTS/8*SPTS) Output; ASI Output
  • Supports UDP/RTP media transmission protocols & multicast/unicast output
  • LCD / keyboard control and web management

NXTENC-2014-1-HD MPEG-2/H.264

Input
  • 1 x SDI, 1 x CVBS, 1 x YPbPr and 1 x HDMI input
  • 2 x XLR, 2 x RCS and 1x AES inputs
  • 1 x ASI input, BNC interface
Video Resolution
  • 1920 x 1080i @59.94Hz, 1920 x 1080i @50Hz
  • 1280 x 720p @ 59.94Hz, 1280 x 720p @50Hz
  • 720 x 480i @59.94Hz, 720 x 576i @50Hz
Encoding
  • MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD
Bit-rate
  • 0.25Mbps~60.5Mbps
Rate Control
  • CBR/VBR
GOP Structure
  • Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB
Aspect Ratio
  • 4:3; 16:9; 1:1; 2.35:1
Advanced Pretreatment
  • De-interlacing, Noise Reduction, Sharpening
AudioEncoding
  • MPEG-1 Layer II HE-AAC (v1&v2) LC-AAC
  • 2 x XLR, 2 x RCS and 1x AES inputs
  • 1 x ASI input, BNC interface
Sampling rate
  • 48KHz
Resolution
  • 24-bit
Bit-rate
  • 32Kbps~384Kbps
Multiplexing
  • 1 ASI input multiplexed with local 1 channels TS
Stream output
  • 2xASI output ports, BNC interface
  • MPTS/8*SPTS over UDP/RTP, 10/100 Base-T Ethernet interface (UDP/RTP multicast/unicast)
System function
  • LCD/keyboard and web management
  • Language: English
  • Ethernet software upgrade
GeneralDimension(W x L x H)
  • 482mm x 405mm x 44.5mm (W x D x H)
Approx weight
  • 4.5kg
Temperature
  • 0~45°C (operation), 20~80°C (Storage)
Power requirement
  • AC110V±10%, 50/60Hz AC 220v±10%,50/60Hz
Power Consumption
  • 21W
