NXT IP TRANSMITTER
& RECEIVER
NXT IP TRANSMITTER& RECEIVER

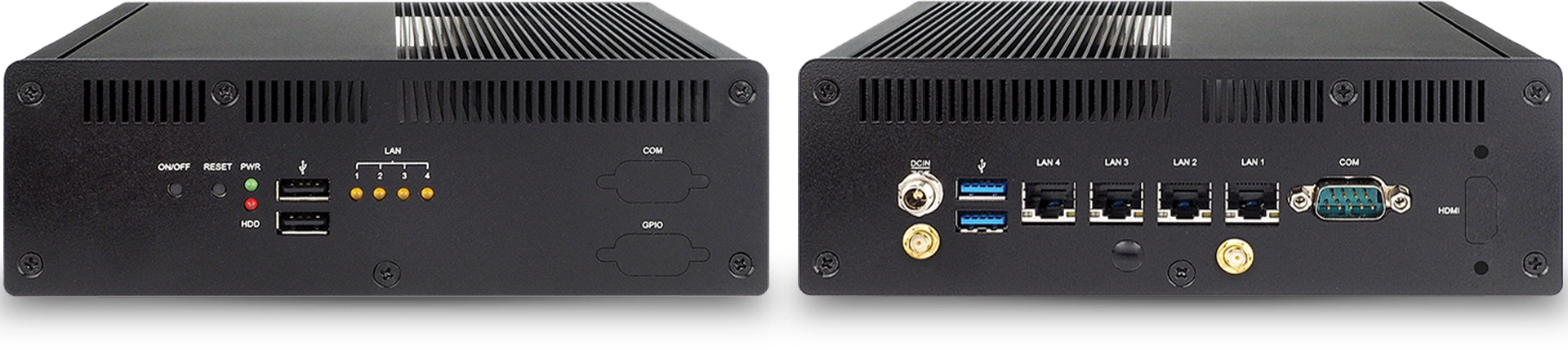

NXT-IP4m1 is a professional broadcast-grade compliant HD/SD video and audio transmitter/receiver device. It supports reliable and error-correcting communications over the public Internet, or private fibre lines. It can function as a gateway for multiple SPTS or MPTS MPEG-TS streams. Its fanless design and high-end electrical components, combined with an easy-to-replace external power supply, guarantees a long-life cycle and high SLA. This appliance can be used in a variety of digital video/audio distribution systems such as CATV headends, Satellite and Terrestrial TV, or mobile deployments. This device has capabilities for OOB management via 3G/LTE connection, and can run any of Nextologies' processing/transport modules.
| CPU | Fanless Intel® Celeron 3965U / 3955U / 3855U, Skylake-U / Kaby lake-U 15W Processors |
| Memory | 1 * 260-pin DDR4-2133 SO-DIMM up to 16GB Total |
| Graphics | Intel HD Graphics |
| LAN | 1 x Intel i219-LM PHY Gigabit LAN |
| 3 x Intel i211-AT PCI-E Gigabit LAN | |
| Audio | NA |
| Storage | 1 x SATA3 6Gb/s Connector |
| 1 x mSATA (Full-size) | |
| Wireless / Mini-PCIE / SIM | 2 x Mini-PCI Express Slot (1*Full-size, 1*Half-size) 1 x Wireless 802.11 b/g/n |
| 1 x SIM Card Socket 1 x Mini-PCI Express Slot (Full-size) | |
| 1 x SIM Card Socket | |
| USB | Embedded 2 * USB 3.0 and 2 * USB 2.0 |
| TPM | Intel fTPM 2.0 (PTT) Trusted Computing Firmware |
| OEM Option: Onboard TPM v1.2 or v2.0 |
| Enclosure Size | 193 (W) x 142.4 (D) x 62 (H) mm |
| Color | Black |
| Storage Bay | 1 * 2.5" SATA Drive Bay |
| 1 * Power Button | |
| 1 * Reset Button | |
| 1 * Power LED | |

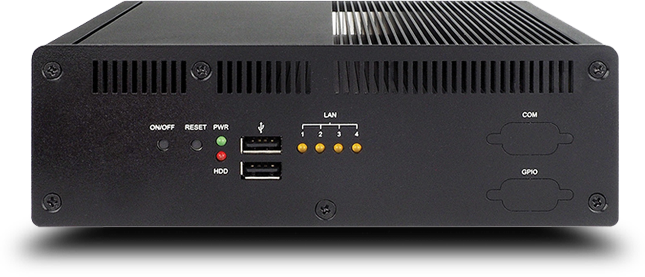

| Front I/O Port | 1 * HDD LED |
| 2 * USB 2.0 ports | |
| 4 * LAN LEDs | |
| 2 * DB9 Punchouts for COM/GPIO (optional) | |
| 1 * +12V 2.5mm Diameter Locking DC Power Jack | |
| 2 * USB 3.0 port | |
| Rear I/O Port | 4 * RJ-45 LAN ports |
| 1 * Serial port (RS232) | |
| 1 * HDMI Punchout (4096 * 2304 @ 24Hz) | |
| Environment | Operating Temperature : 0 ∼ 50°C |
| Storage Temperature : -10 ∼ 70°C | |
| Functional | Networking Appliance, Firewall/Router, Industrial Control, Digital Security, Embedded System |
| Certificate | CE,FCC,ErP For Barebone |
| CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter |
NXT-IP4m1 is a professional broadcast-grade compliant HD/SD video and audio transmitter/receiver device. It supports reliable and error-correcting communications over the public Internet, or private fibre lines. It can function as a gateway for multiple SPTS or MPTS MPEG-TS streams. Its fanless design and high-end electrical components, combined with an easy-to-replace external power supply, guarantees a long-life cycle and high SLA. This appliance can be used in a variety of digital video/audio distribution systems such as CATV headends, Satellite and Terrestrial TV, or mobile deployments. This device has capabilities for OOB management via 3G/LTE connection, and can run any of Nextologies' processing/transport modules.
