NXT-4

NXT-4

ip in/out + sdi decoder

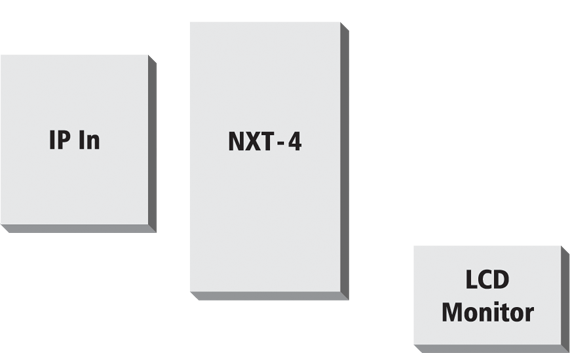

BLOCK DIAGRAM

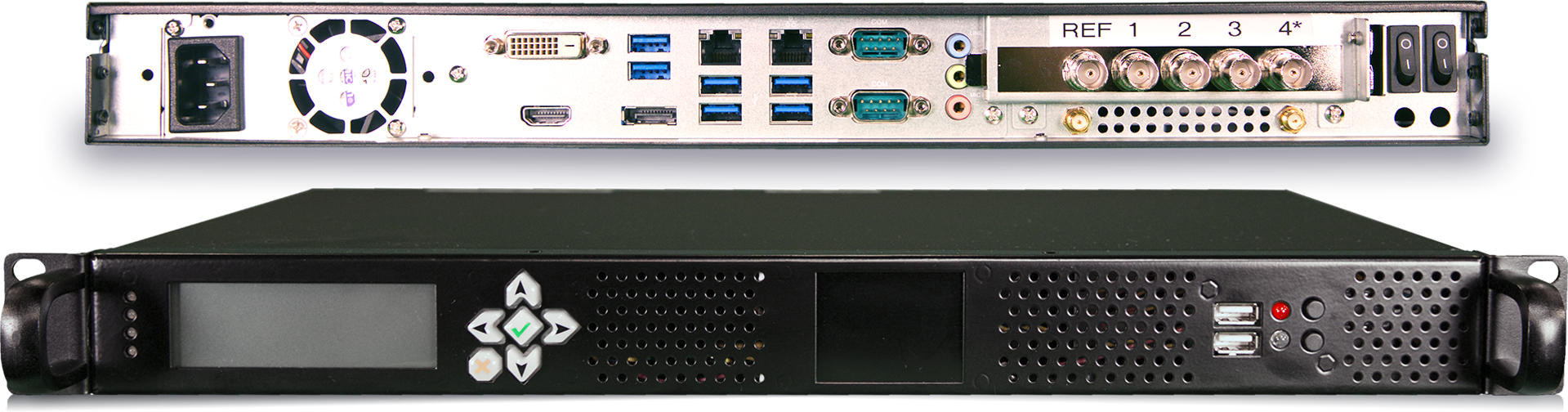

NXT-4 is our latest professional broadcast-grade compliant HD/SD video and audio decoder and encoder device. This unit has the latest Nextologies DaVinci technology that supports reliable and error-correcting communications over public internet, or private fibre lines. It can function as an encoder for one single SDI input stream, or as a decoder for up to four (4) simultaneous SDI output streams and/or multiple IP streams. It’s high density of outputs makes it a high demand device as it takes less power, has a small footprint and provides better overall management. This appliance can be used in a variety of digital video/audio distribution systems such as CATV headends, Satellite and Terrestrial TV.

ip in/out + sdi decoder

  • Supports Nextologies DaVinci (TXR) protocol
  • Supports MPEG-2 & MPEG-4 video decoding
  • Supports IP re-transmission
  • Re-multiplexer embedded
  • Supports IP input/output decoding at the same time
  • Supports Closed Captioning (CC)
  • Supports front panel and NMS network management and web management
  • Supports Out of band cellular remote management
  • Support LCD display for decoding video

ip in/out + sdi decoder

Input Interface IP Input Rj45 Port, 1Gbps
Output Interface IP Input MPTS Output
IP output SPTS Output
Video output 4 x HD/SD - SDI (BNC): 1080i@25/29.97/30fps; 720p@50/59.94/60 fps; 576i@25fps; 480i@29.97 fps
Audio output 4 x HD/SD - SDI (BNC)): 1080i@25/29.97/30fps; 720p@50/59.94/60 fps; 576i@25fps; 480i@29.97 fps
Video Decoding MPEG-2, MPEG-4
Audio Decoding MPEG1 Layer 2, AC3, HE-AAC (v2), LC-AAC
NMS Port Ethernet Port 10/100/1000M
Ethernet Port NMS: TCP/IP, TS over IP: UDP
System Interface Front Panel (LCD + buttons), Network (NMS), Web Management
Monitoring LCD Monitor for decoded video
Miscellaneous Dimension 483mm x 286mm x 51mm ( L×W×H)
Approx weight 4.92kg
Power <75W(Max)
Temperature 0~45° C (operational), -20~80° C (Storage)

ip in/out + sdi decoder

NXT-4 is our latest professional broadcast-grade compliant HD/SD video and audio decoder and encoder device. This unit has the latest Nextologies DaVinci technology that supports reliable and error-correcting communications over public internet, or private fibre lines. It can function as an encoder for one single SDI input stream, or as a decoder for up to four (4) simultaneous SDI output streams and/or multiple IP streams. It’s high density of outputs makes it a high demand device as it takes less power, has a small footprint and provides better overall management. This appliance can be used in a variety of digital video/audio distribution systems such as CATV headends, Satellite and Terrestrial TV.

BLOCK DIAGRAM

ip in/out + sdi decoder

  • Supports Nextologies DaVinci (TXR) protocol
  • Supports MPEG-2 & MPEG-4 video decoding
  • Supports IP re-transmission
  • Re-multiplexer embedded
  • Supports IP input/output decoding at the same time
  • Supports Closed Captioning (CC)
  • Supports front panel and NMS network management and web management
  • Supports Out of band cellular remote management
  • Support LCD display for decoding video

ip in/out + sdi decoder

Input Interface
IP Input
  • Rj45 Port, 1Gbps
Output Interface
IP output
  • MPTS Output
IP output
  • SPTS Output
Video output
  • 4 x HD/SD - SDI (BNC): 1080i@25/29.97/30fps; 720p@50/59.94/60 fps; 576i@25fps; 480i@29.97 fps
Audio output
  • 4 x HD/SD - SDI (BNC)): 1080i@25/29.97/30fps; 720p@50/59.94/60 fps; 576i@25fps; 480i@29.97 fps
Video Decoding
  • MPEG-2, MPEG-4
Audio Decoding
  • MPEG1 Layer 2, AC3, HE-AAC (v2), LC-AAC
NMS Port
Ethernet Port
  • 10/100/1000M
Ethernet Port
  • NMS: TCP/IP, TS over IP: UDP
System
Interface
  • Front Panel (LCD + buttons), Network (NMS), Web Management
Monitoring
  • LCD Monitor for decoded video
Miscellaneous
Dimension(W x L x H)
  • 483mm x 286mm x 51mm (W x D x H)
Approx weight
  • 4.92kg
Temperature
  • 0~45° C (operational), -20~80° C(Storage)
Power Consumption
  • <75W(Max)
